5SV87032KK

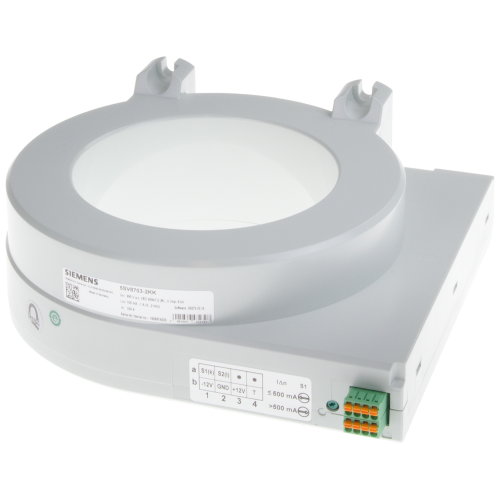

Summation current transformer type B, 120 mm,100 mA 1A

Manufacturer's No: 5SV8703-2KK     Manufacturer: Siemens
Summation current transformer type B, 120 mm,100 mA 1A

View 3D

Availability Back Order

£1,627.34
  • Summation current transformer type B
  • Size: 120 mm
  • Output current: 100 mA to 1A


Product

Manufacturer Material ID -
5SV8703-2KK
Net Weight -
1.98kg

Additional Product Information

Commodity Code -
90309000
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
41112400

Technical Specification

Rated frequency -
- Hertz
Rated control supply voltage Us at DC -
- Volt
Max. permitted delay-on energization time -
- Second
Min. adjustable delay-on energization time -
- Second
Response value amperage 1 -
- Milliampere
Response value amperage 2 -
- Milliampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Rated control supply voltage Us at AC 50HZ -
690 Volt
Rated control supply voltage Us at AC 60HZ -
690 Volt
Function -
For three-phase supply system
Rated voltage -
690 Volt
Rated control supply voltage at AC 50 Hz -
690 Volt
Rated control supply voltage at AC 60 Hz -
690 Volt
Voltage type for actuating -
AC
Depth -
191.5 Millimetre
Height -
67 Millimetre
Type of electric connection -
Plug-in connection
Width -
210 Millimetre

Availability Back Order

£1,627.34
