5SV60166MC16

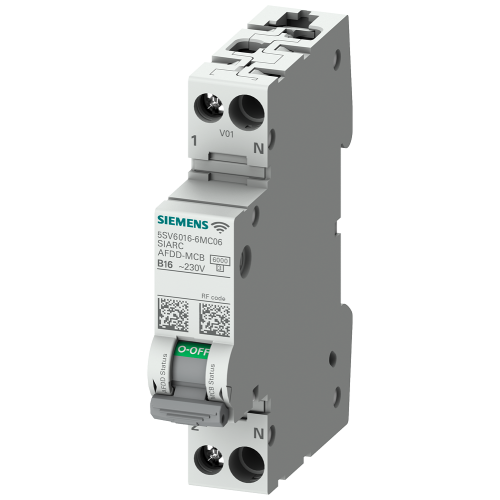

AFDD-MCB combo 5SV6 COM, measurement function, communication 230 V 6 kA, 1+N, B, 16 A

Manufacturer's No: 5SV6016-6MC16     Manufacturer: Siemens

Availability Back Order

£276.22
  • AFDD-MCB-Combination
  • AC 230V, 6kA
  • 1+N pole, Type B
  • 16A
  • Radio approval required
  • Certificates available for specific countries

Selectable mandatory product

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
5SV6016-6MC16
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment attached at delivery -
Arc fault detection device (AFDD)
Concurrently switching N-neutral -
Control voltage type auxiliary equipment -
AC
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles -
2
Pollution degree -
2
Rated current -
16 Ampere
Rated short-circuit breaking capacity EN 60898 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
6 kiloampere
Rated switch current auxiliary device -
6000 Ampere
Rated voltage -
230 Volt
Rated voltage auxiliary device -
195 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
1

Availability Back Order

£276.22
