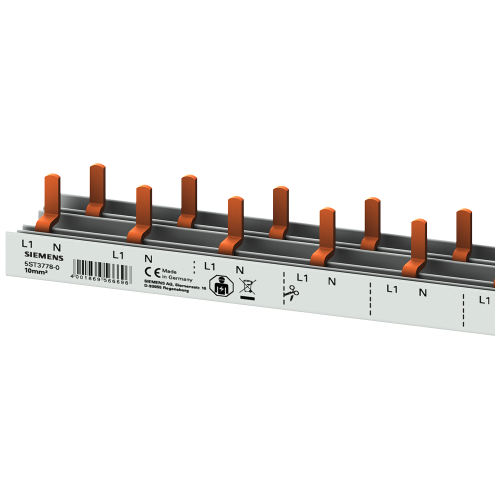

5ST37780

compact Pin Busbar, 10mm2 connection: 1p/N compact device 1 MW + auxiliary switch 0.5 MW touch protected 1000mm cuttable

Manufacturer's No: 5ST3778-0     Manufacturer: Siemens
compact Pin Busbar, 10mm2 connection: 1p/N compact device 1 MW + auxiliary switch 0.5 MW touch protected 1000mm cuttable

Availability Back Order

£142.61
  • Pin Busbar with 10mm2 connection
  • Compact design with 1p/N connection
  • 1 MW main power rating
  • 0.5 MW auxiliary switch
  • Touch protection feature
  • Length of 1000mm, cuttable

Accessories

Instructional video
Instructional video


Product

Manufacturer Material ID -
5ST3778-0
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121409

Technical Specification

Cross section -
10 Square millimetre
Insulated -
Length -
1055 Millimetre
Max. rated operation voltage Ue -
230 Volt
Module width -
27 Millimetre
Number of phases -
2
Number of poles -
1
Suitable for devices with auxiliary switch -
Suitable for devices with N-busbar -
Suitable for number of devices -
40
Type of electric connection -
Pin
Width in number of modular spacings -
40

Availability Back Order

£142.61
