5ST37730

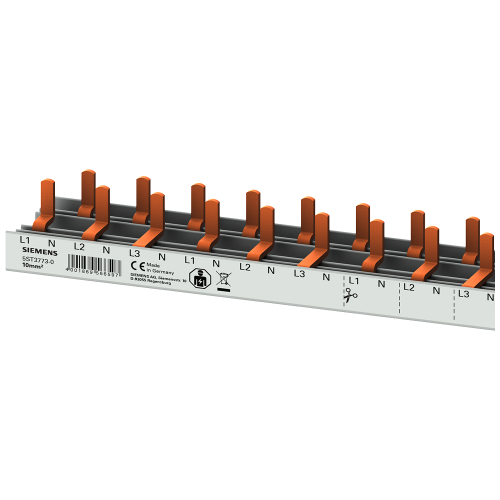

compact Pin Busbar, 10mm2 connection: 3p/N compact device 1 MW touch protected 1000mm cuttable

Manufacturer's No: 5ST3773-0     Manufacturer: Siemens
compact Pin Busbar, 10mm2 connection: 3p/N compact device 1 MW touch protected 1000mm cuttable

Availability Back Order

£240.22
  • Pin Busbar with 10mm² connection
  • 3p/N compact device
  • 1 MW touch protected
  • Length: 1000mm, cuttable

Accessories

Instructional video
Instructional video


Product

Manufacturer Material ID -
5ST3773-0
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121409

Technical Specification

Cross section -
10 Square millimetre
Insulated -
Length -
1060 Millimetre
Max. rated operation voltage Ue -
230 Volt
Module width -
18 Millimetre
Number of phases -
4
Number of poles -
3
Suitable for devices with N-busbar -
Suitable for number of devices -
60
Type of electric connection -
Pin
Width in number of modular spacings -
60
