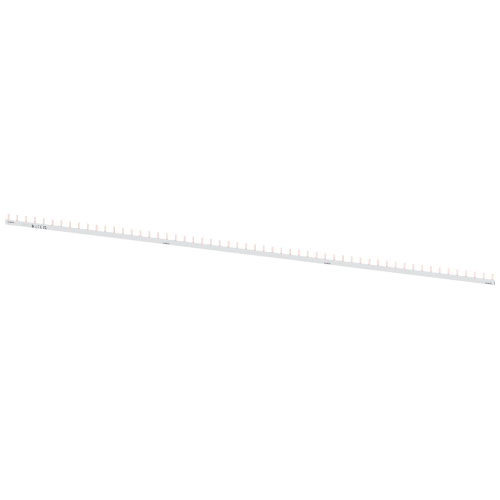

5ST3764

Pin busbar, 1-phase 10 mm2, 56 pins, Insulation gray can be cut, without end caps

Manufacturer's No: 5ST3764     Manufacturer: Siemens
Pin busbar, 1-phase 10 mm2, 56 pins, Insulation gray can be cut, without end caps

Availability Back Order

£22.53
  • Pin busbar
  • 1-phase
  • Conductor size: 10 mm2
  • 56 pins
  • Insulation color: gray
  • Can be cut
  • Without end caps

Accessories

Price £6.71
Back Order

End cap for pin busbars 4-phase

Product Code - 5ST3718
Price £2.49
Back Order
Instructional video
Instructional video


Product

Manufacturer Material ID -
5ST3764
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121402

Technical Specification

Number of poles -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Rated surge voltage -
- Kilovolt
Number of modular spacings -
-
Rated short-time withstand current lcw -
- kiloampere
Max. rated operation voltage Ue -
- Volt
Pitch dimensions -
- Millimetre
Rated permanent current Iu -
63 Ampere
Cross section -
10 Square millimetre
Insulated -
Length -
1016 Millimetre
Module width -
18 Millimetre
Number of phases -
1
Suitable for devices with N-busbar -
Suitable for number of devices -
56
Type of electric connection -
Pin
Width in number of modular spacings -
56

Availability Back Order

£22.53
