5ST36850

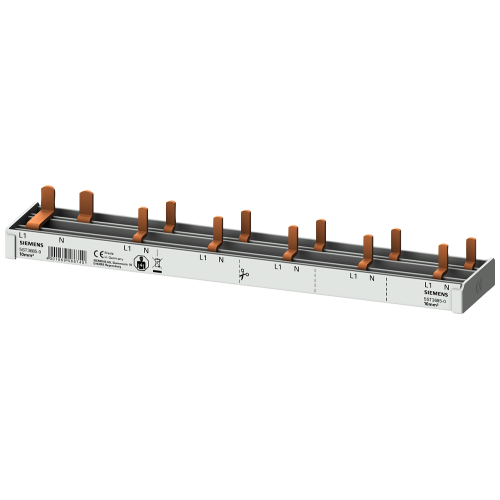

Compact pin busbar, 10 mm2, connection: 2-pole (L N) 1x RCCB 2-pole + 5x AFDD 5SM6

Manufacturer's No: 5ST3685-0     Manufacturer: Siemens
Compact pin busbar, 10 mm2, connection: 2-pole (L  N) 1x RCCB 2-pole + 5x AFDD 5SM6

Availability Back Order

£31.63
  • Pin Busbar with 10mm2 connection
  • 2-pole (P & N) RCCB
  • 5x AFDD 5SM6+
  • Compact design with 1 MW main switch and 0.5 MW auxiliary switch
  • Touch protected
  • Fixed length of 12 MW

Accessories

Instructional video
Instructional video


Product

Manufacturer Material ID -
5ST3685-0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121402

Technical Specification

Cross section -
10 Square millimetre
Insulated -
Length -
216 Millimetre
Max. rated operation voltage Ue -
230 Volt
Module width -
36 Millimetre
Number of phases -
2
Number of poles -
1
Suitable for devices with N-busbar -
Suitable for number of devices -
6
Type of electric connection -
Pin
Width in number of modular spacings -
6

Availability Back Order

£31.63
