5SL60407

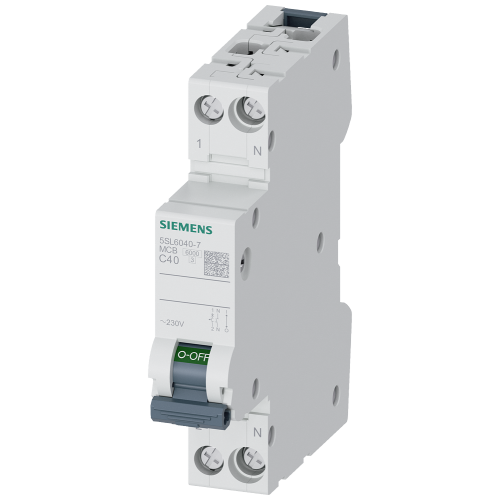

CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C40

Manufacturer's No: 5SL6040-7     Manufacturer: Siemens
CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C40

View 3D

Availability In Stock

£33.38
  • Circuit Breaker
  • Voltage: 230V
  • Breaking Capacity: 6kA
  • Configuration: 1+N pole
  • Rated Current: 40A

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.76
Back Order
Price £0.0816
Back Order
Price £0.0816
Back Order
Product video
Product video


Product

Manufacturer Material ID -
5SL6040-7
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Built-in depth -
70 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated impulse withstand voltage Uimp -
4 Kilovolt
Frequency -
50 Hertz
Over voltage category -
3
Degree of protection (IP rating) -
IP20
Number of protected poles -
1
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
2
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
250 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
1
