5SJ42087HG42

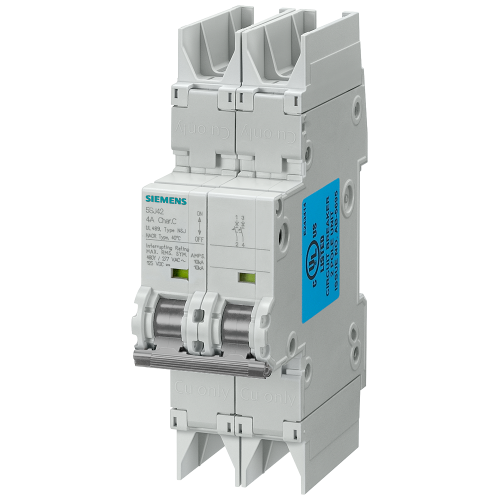

Miniature circuit breaker 480 Y/277 V 10 kA, 2-pole, C, 8 A, in accordance with UL 489

Manufacturer's No: 5SJ4208-7HG42     Manufacturer: Siemens
Miniature circuit breaker 480 Y/277 V 10 kA, 2-pole, C, 8 A, in accordance with UL 489

View 3D

Availability Back Order

£92.01
  • Circuit breaker
    • 2-pole
    • 10kA interrupting capacity
    • 8A current rating
    • Trip curve: C
    • UL 489 listed
    • Voltage rating: 480Y/277V

Selectable mandatory product

Accessories

Price £0.43
Back Order
Product video
Product video


Product

Manufacturer Material ID -
5SJ4208-7HG42
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Current limiting class -
-
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Rated impulse withstand voltage Uimp -
- Kilovolt
Built-in depth -
70 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Frequency -
50 Hertz
Degree of protection (IP rating) -
IP20
Number of protected poles -
2
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Number of poles (total) -
2
Over voltage category -
3
Pollution degree -
3
Rated current -
8 Ampere
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
AC/DC
Width in number of modular spacings -
2

Availability Back Order

£92.01
