KVI-CP-3-GS-GD-5 Connecting cable

Manufacturer's No: KVI-CP-3-GS-GD-5     Manufacturer: Festo
KVI-CP-3-GS-GD-5 Connecting cable

Availability Back Order

£53.87

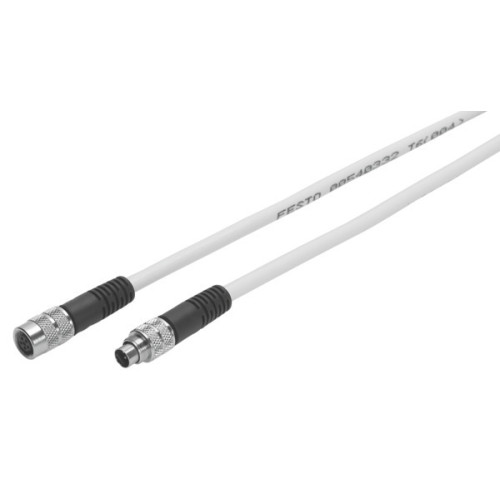

  • Connecting cable KVI-CP-3-GS-GD-5
  • Socket M9, straight, 5-pin/wire, 5m cable length
  • Cable made of TPE-U(PUR) material, 0.25 mm², 0.34 mm², 0.49 mm²
  • Plug M9, straight, 5-pin/wire, IP65/IP67 rated
  • Additional function: Contact 3 of socket 1mm leading
  • Frequency of connection: 500
  • Weight: 255.4g
  • Electrical connection 1: Field device side, M9x0.5 connector system, 5 connections/cores
  • Electrical connection 2: Controller side, M9x0.5 connector system, 5 connections/cores
  • Operational voltage range DC: 0V to 30V

Read more

  • Current rating at 40°C: 1.6A, 2.3A for 0.34 mm², 3.6A for 0.49 mm²
  • Immunity to surge: 1.5KV, shielding included
  • Cable suitable for energy chains, bending radius 75mm, diameter 5.5mm
  • Cable structure: 2 x 0.25 mm², 2 x 0.34 mm², 1 x 0.49 mm²
  • Degree of protection: IP65, IP67
  • Ambient temperature: -20°C to 80°C, -5°C to 80°C with moving cable
  • CE mark: EU RoHS Directive compliant
  • UKCA marking: UK RoHS compliant
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Pollution degree: 1
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Materials: Cable sheath - TPE-U(PUR), light grey color; Housing - PA, PBT, TPE-U(PUR), black color; Screw-type lock - Nickel-plated brass; Electrical contact - Gold-plated bronze, gold-plated brass; Insulating sheath - TPE-U(PUR)


Product

Manufacturer Material ID -
KVI-CP-3-GS-GD-5
Net Weight -
1.11kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

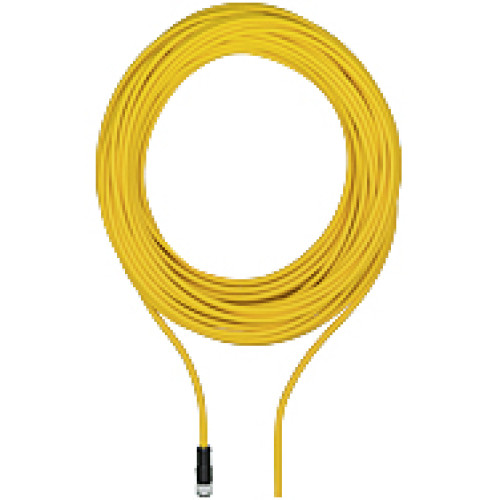

Cable type -
Multi-core
Number of poles -
8
Continuity resistance -
3 Milli-Ohm
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
Free conductor end
Type of electrical connection, field-sided -
M12
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Colour cable sheath -
Yellow
Cable length -
20 Metre
Degree of protection (IP rating) -
IP68
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-25 Degrees celsius
Rated current In -
2 Ampere
Rated voltage -
30 Volt
Thumbnail of product picture -
Medien_800/Pictures_800/540333_800.jpg
