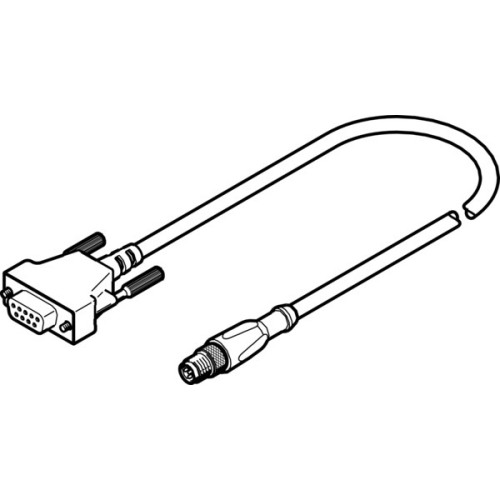

FBA-CO-SUB-9-M12 Fieldbus adapter

Manufacturer's No: FBA-CO-SUB-9-M12     Manufacturer: Festo
FBA-CO-SUB-9-M12 Fieldbus adapter

Availability Back Order

£36.72
  • Protocol: CANopen, DeviceNet
  • Electrical Connection 1:
    • Function: Field device side
    • Design: Angular
    • Connection Type: Plug socket
    • Cable Outlet: Straight
    • Connector System: Sub-D
    • Number of Connections/Cores: 9 (6 used)
    • Type of Mounting: 2x screw 4-40 UNC-2A
    • Connection Pattern: 995638
  • Function: Field device side
  • Design: Angular
  • Connection Type: Plug socket
  • Cable Outlet: Straight
  • Connector System: Sub-D
  • Number of Connections/Cores: 9 (6 used)
  • Type of Mounting: 2x screw 4-40 UNC-2A
  • Connection Pattern: 995638

Read more

  • Electrical Connection 2:
    • Function: Controller side
    • Design: Round
    • Connection Type: Plugs
    • Cable Outlet: Straight
    • Connector System: M12x1, A-coded to EN 61076-2-101
    • Number of Connections/Cores: 5 (all used)
    • Connection Pattern: 995383
  • Function: Controller side
  • Design: Round
  • Connection Type: Plugs
  • Cable Outlet: Straight
  • Connector System: M12x1, A-coded to EN 61076-2-101
  • Number of Connections/Cores: 5 (all used)
  • Connection Pattern: 995383
  • Nominal Operating Voltage: 24 V
  • Shielding: Yes
  • Cable Length: 0.1 m
  • Cable Diameter: 6.3 mm
  • Cable Structure: 4 x 0.34 mm²
  • Nominal Cross-Section Conductor: 0.34 mm²
  • Degree of Protection: IP67 (In assembled state)
  • Ambient Temperature: -5°C to 50°C
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • RoHS-Compliant
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • Material Cable Sheath: TPE-U(PUR)


Product

Manufacturer Material ID -
FBA-CO-SUB-9-M12
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

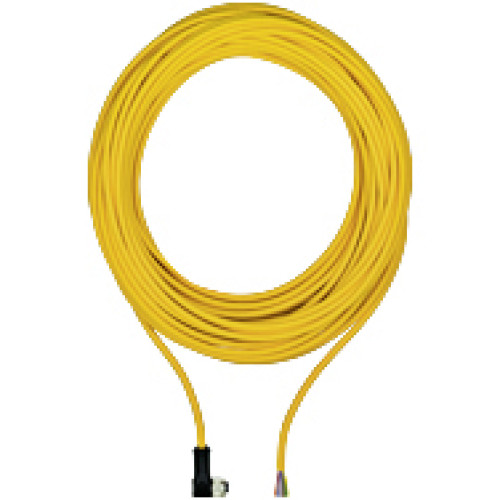

Cable type -
Multi-core
Number of poles -
8
Continuity resistance -
3 Milli-Ohm
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
Free conductor end
Type of electrical connection, field-sided -
M12
Positioning cable feed, field-sided -
Right-angled
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Colour cable sheath -
Yellow
Cable length -
10 Metre
Degree of protection (IP rating) -
IP68
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-25 Degrees celsius
Rated current In -
2 Ampere
Rated voltage -
30 Volt
