50133008

The Safety relay from . Application: Base device for E-Stop and safety door applications; SIL: 3, IEC 61508; Performance Level (P

Manufacturer's No: MSI-SR-LC21-01     Manufacturer: Leuze
The Safety relay from .  Application: Base device for E-Stop and safety door applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (NO conta

Availability Back Order

£173.00
  • Application: E-Stop circuits, Optoelectronic protective devices, Position switches, Solenoid switches, Transponder switches
  • Functions: Start/restart interlock (RES), Contactor monitoring (EDM)
  • Restart: Automatic, Manual
  • Safety Integrity Level (SIL): 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Category: 4, EN ISO 13849-1
  • Contacts: 2 NO contacts / 1 NC contact
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 96.5 mm x 114 mm
  • Ambient Temperature (Operation): -25 to 55 °C

Read more

  • Certifications: TÜV Rheinland, c UL US


Product

Manufacturer Material ID -
MSI-SR-LC21-01
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
With approval for T‹V -
Stop category acc. IEC 60204 -
UN
Voltage type for actuating -
UN
Rated control supply voltage Us at AC 50HZ -
26.4 Volt
Rated control supply voltage Us at AC 60HZ -
20.4 Volt
Rated control supply voltage Us at DC -
20.4 Volt
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Suitable for monitoring of position switches -
With approval for TÜV -
Depth -
114 Millimetre
Evaluation inputs -
2-channel
Height -
96.5 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
1
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Power consumption -
2 Watt
Rail mounting possible -
Rated switch current -
6 Ampere
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
Other
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
None
Voltage type (operating voltage) -
AC/DC
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -

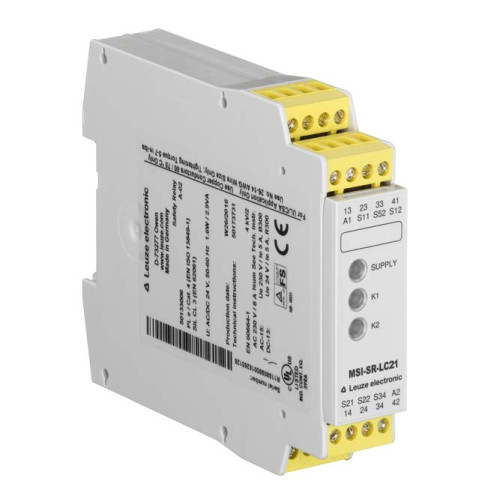

Thumbnail of product picture -
