2CPX041276R9999

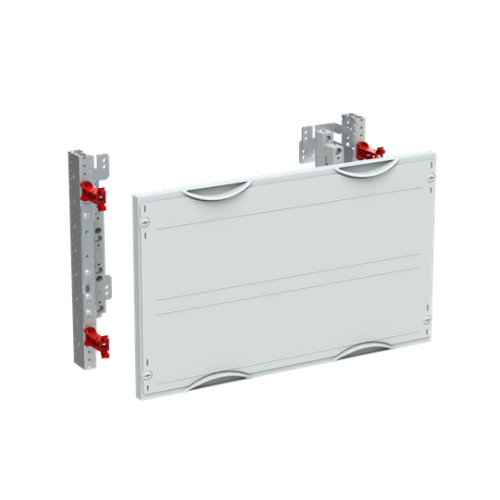

MS227 Busbar system horizontal 300 mm x 500 mm x 215 mm , 000

Manufacturer's No: 41276     Manufacturer: ABB
MS227 Busbar system horizontal 300 mm x 500 mm x 215 mm , 000

Availability Back Order

£170.42
  • Busbar system horizontal
  • Interior fitting module for Busbar system
  • Dimensions: 300 mm x 500 mm x 215 mm
  • Grid unit: 2 GU = 300 mm
  • Panel width: 500 mm
  • 48 Space units
  • Busbar alignment: horizontal
  • Busbar holders: ZX151
  • Busbar center distance: 60 mm
  • Maximum 3 Cu busbars (ordered separately)

Read more

  • Rated current: 630 A
  • Plastic covers with 90 degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable for cabinet depth of 215 mm


Product

Manufacturer Material ID -
41276
Net Weight -
1.31kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
60 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
215 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
28 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability Back Order

£170.42
