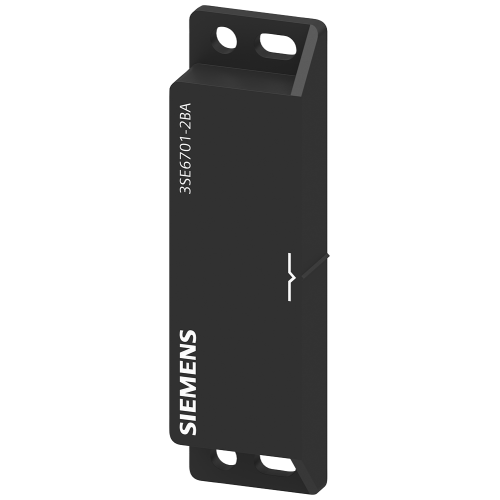

3SE67012BA

Switching magnet, rectangular, large, with 8 mm switching interval

Manufacturer's No: 3SE6701-2BA     Manufacturer: Siemens

Availability Back Order

£22.30
  • Type: Solenoid
  • Shape: Rectangular
  • Size: Large
  • Operating Distance: 8 mm
  • Compatible with contact blocks 3SE660-2BA

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE6701-2BA
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85051990
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32141110

Technical Specification

Voltage type -
UN
Coating housing -
UN
Switching distance -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of electric connection -
UN
Protected switch distance OFF -
- Millimetre
Protected switch distance ON -
- Millimetre
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Type of actuation -
UN
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Suitable for safety functions -
Ambient temperature -
-25 Degrees celsius
Type of switching output -
Dry reed contact
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Mechanical mounting condition for sensor -
Not flat
Height of sensor -
13 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Housing material -
Plastic
Length of sensor -
88 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Width sensor -
25 Millimetre

Availability Back Order

£22.30
