3SE51140LB011AE3

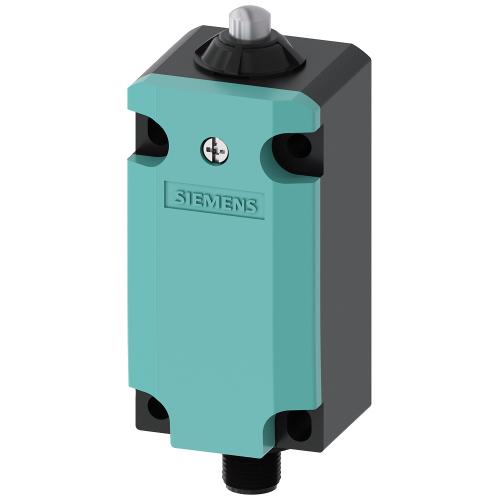

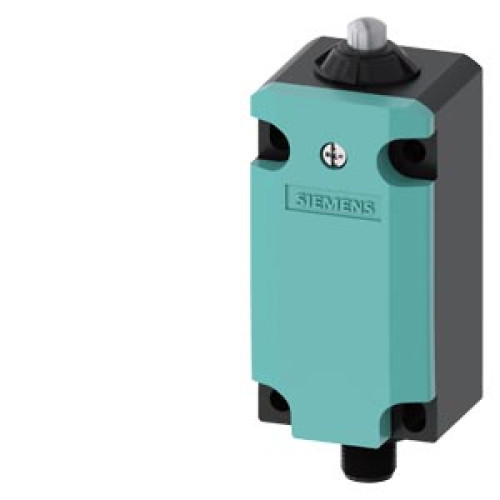

Position switch with plain plunger, metal encl. 40 mm, EN50041, 1 NO/2 NC, 5-pole

Manufacturer's No: 3SE5114-0LB01-1AE3     Manufacturer: Siemens
Position switch with plain plunger, metal encl. 40 mm, EN50041, 1 NO/2 NC, 5-pole

View 3D

Availability Back Order

£85.37
  • Position switch with plain plunger
  • Stainless steel plunger with metal enclosure, 40 mm according to EN 50041
  • Device connection with M12 plug, 5-pole
  • Fixed 1 NO/2 NC quick action contacts (2 NO and PE connected)
  • Maximum 125 V, 4 A
  • Pin configuration: Pin1=21, Pin4=22, Pin2=31, Pin5=32, Pin3=PE
  • Suitable for connection to all SIMATIC ET200* compact block I/O modules

Accessories

Component part



Product

Manufacturer Material ID -
3SE5114-0LB01-1AE3
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39122213

Electrical data

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated permanent current Iu -
40 Ampere
Overload release current setting -
16 Ampere
Rated voltage -
600 Volt
Position of connection for main current circuit -
Other
Adjustment range short-term delayed short-circuit release -
24 Ampere
Adjustment range undelayed short-circuit release -
60 Ampere
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
5 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere

Mechanical data

Diameter sensor -
- Millimetre
Material housing -
Metal
Height of sensor -
37.3 Millimetre
Housing material -
Metal
Length of sensor -
103.5 Millimetre
Width sensor -
40 Millimetre

General data

Type of electric connection -
Plug-in connection M12
Type of interface -
None
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of poles -
4
Number of auxiliary contacts as change-over contact -
0
Degree of protection (IP) -
IP40
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Motor drive optional -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
Alignment of the control element -
Roller cam straight
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Forced opening -
Interface type -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Switching function -
Quick-break switch
Type of control element -
Other

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Safety data

Explosion safety category for dust -
None
Explosion safety category for gas -
None
Number of safety auxiliary contacts -
2
Suitable for safety functions -
Type of interface for safety communication -
None

Availability Back Order

£85.37
