3NP11531BC22

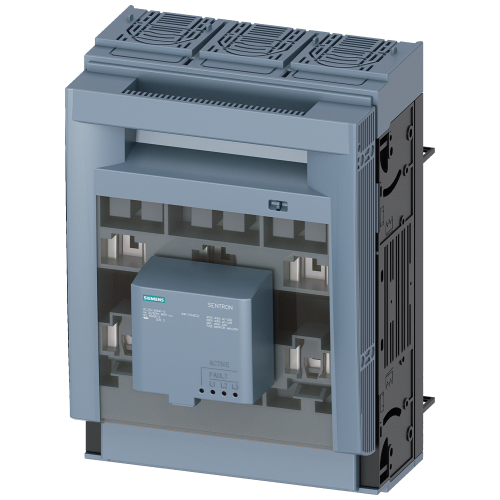

SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH2, 400 A

Manufacturer's No: 3NP1153-1BC22     Manufacturer: Siemens

Availability Back Order

£456.67
  • Fuse switch disconnector 3NP1
    • 3-pole
    • NH2
    • 400 A
    • For Busbar system 8US 60 mm
    • Box terminal
    • Fuse monitoring: electronic EFM10
    • Cover level 32/70 mm

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3NP1153-1BC22
Net Weight -
5.06kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
400 Ampere
Suitable for busbar mounting -
Suitable for fuses -
NH1, NH2
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -
With error protection -

Availability Back Order

£456.67
