3NP11431DA20

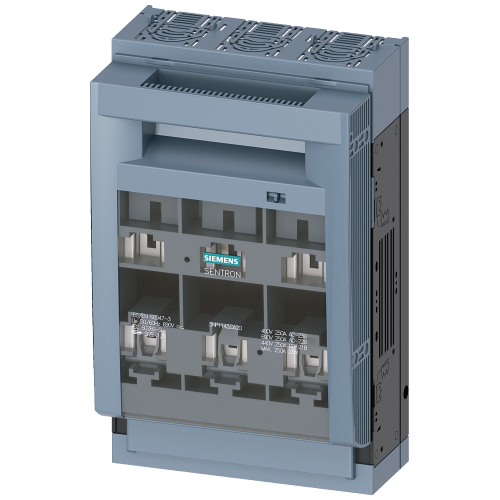

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH1, 250 A, for assembly and installation on mountin

Manufacturer's No: 3NP1143-1DA20     Manufacturer: Siemens
SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH1, 250 A, for assembly and installation on mountin

View 3D

Availability Back Order

£161.01
  • Fuse switch disconnector 3NP1
  • 3-pole
  • NH1
  • 250 A
  • Suitable for assembly on mounting plate
  • Equipped with box terminal
  • Cover level of 70 mm

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3NP1143-1DA20
Net Weight -
2.92kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Suitable for ground mounting -
Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
250 Ampere
Suitable for floor mounting -
Suitable for fuses -
NH0, NH1
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -

Availability Back Order

£161.01
