3NP11431BC22

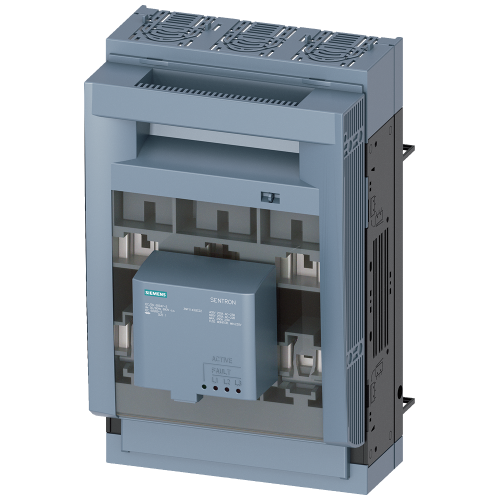

SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH1, 250 A

Manufacturer's No: 3NP1143-1BC22     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH1, 250 A

View 3D

Availability Back Order

£384.09
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 3-pole, NH1
  • Current Rating: 250 A
  • Compatible with Busbar System 8US (60 mm)
  • Terminal Type: Box
  • Fuse Monitoring: Electronic EFM10
  • Cover Level: 32/70 mm

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3NP1143-1BC22
Net Weight -
3.69kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
250 Ampere
Suitable for busbar mounting -
Suitable for fuses -
NH0, NH1
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -
With error protection -

Availability Back Order

£384.09
