3NP11331BC12

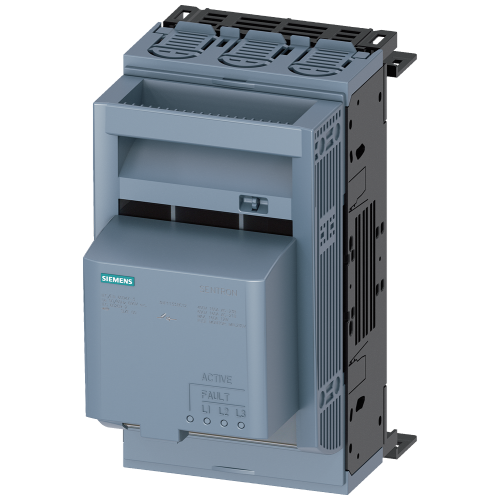

SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH00, 160 A

Manufacturer's No: 3NP1133-1BC12     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH00, 160 A

Availability Back Order

£211.18
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 3-pole, NH00
  • Current Rating: 160 A
  • Compatible with Busbar System 8US 60 mm
  • Terminal Type: Flat
  • Fuse Monitoring: Electronic EFM10
  • Cover Level: 32/70 mm

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3NP1133-1BC12
Net Weight -
1.42kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
160 Ampere
Number of poles -
3
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Rail connection
Type of control element -
Cover grip
Version as safety switch -
Suitable for busbar mounting -
Max. rated operation voltage Ue AC -
690 Volt
With error protection -
Position control element -
Front

Availability Back Order

£211.18
