3NP11311CA24

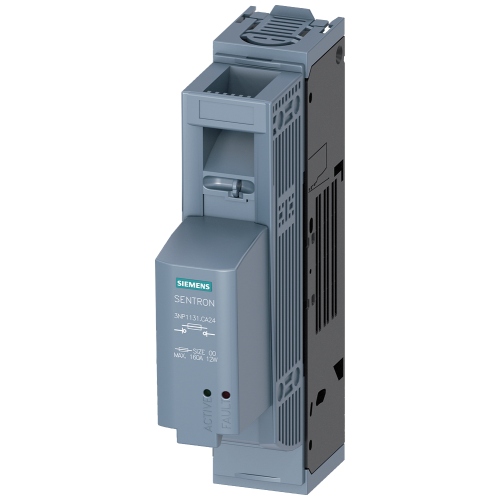

SENTRON, 3NP1 fuse switch disconnector, 1-pole, NH00, 160 A

Manufacturer's No: 3NP1131-1CA24     Manufacturer: Siemens

Availability Back Order

£93.86
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 1-pole
  • Size: NH00
  • Current Rating: 160 A
  • Mounting: Assembly on mounting plate
  • Connection: Box terminal
  • Features: Fuse monitoring electronic EFM15
  • Cover Level: 45mm

Selectable mandatory product

Accessories

Component part

Product video


Product

Manufacturer Material ID -
3NP1131-1CA24
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
160 Ampere
Number of poles -
1
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Cover grip
Version as safety switch -
Suitable for ground mounting -
Max. rated operation voltage Ue AC -
240 Volt
With error protection -
Position control element -
Front side

Availability Back Order

£93.86
