3NP11311CA20

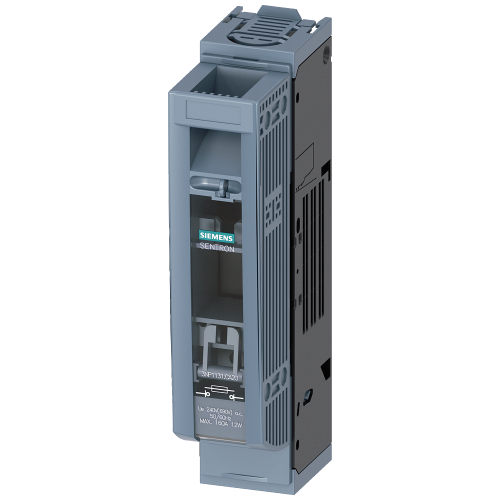

SENTRON, 3NP1 fuse switch disconnector, 1-pole, NH00, 160 A

Manufacturer's No: 3NP1131-1CA20     Manufacturer: Siemens

Availability Back Order

£36.24
  • Fuse switch disconnector 3NP1
  • 1-pole
  • NH00 size
  • 160 A
  • Suitable for assembly on mounting plate
  • Equipped with box terminal
  • Cover level: 45 mm

Selectable mandatory product

Accessories

Component part

Product video


Product

Manufacturer Material ID -
3NP1131-1CA20
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
160 Ampere
Number of poles -
1
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Cover grip
Version as safety switch -
Max. rated operation voltage Ue AC -
240 Volt
Position control element -
Front side

Availability Back Order

£36.24
