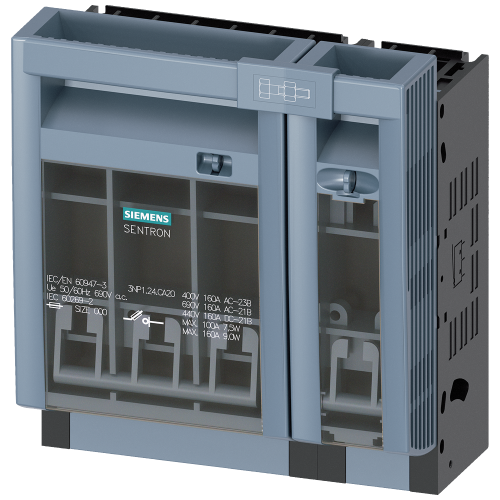

3NP11241CA20

SENTRON, 3NP1 fuse switch disconnector, 4-pole, NH000, 160 A

Manufacturer's No: 3NP1124-1CA20     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 4-pole, NH000, 160 A

View 3D

Availability Back Order

£79.19
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 4-pole
  • Fuse Type: NH000
  • Current Rating: 160 A
  • Mounting: Assembly on mounting plate
  • Connection: Box terminal
  • Cover Level: 45 mm

Selectable mandatory product

Accessories

Product video


Product

Manufacturer Material ID -
3NP1124-1CA20
Net Weight -
0.80kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
100 Ampere
Number of poles -
4
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Cover grip
Version as safety switch -
Max. rated operation voltage Ue AC -
690 Volt
Position control element -
Front side

Availability Back Order

£79.19
