3NP11231JC22

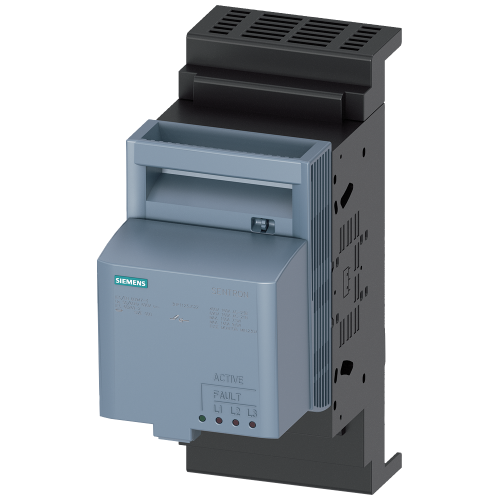

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000, 160 A, for Rittal busbar system 60 mm, Box te

Manufacturer's No: 3NP1123-1JC22     Manufacturer: Siemens
SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000, 160 A, for Rittal busbar system 60 mm, Box te

View 3D

Availability Back Order

£204.58
  • Fuse switch disconnector 3NP1
    • 3-pole
    • NH000
    • 160 A
    • Compatible with Rittal busbar system 60 mm
    • Box terminal
    • Fuse monitoring: electronic EFM10
    • Cover level: 32/70 mm

Selectable mandatory product

Accessories

Component part

Product video


Product

Manufacturer Material ID -
3NP1123-1JC22
Net Weight -
1.06kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
125 Ampere
Number of poles -
3
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Cover grip
Version as safety switch -
Suitable for busbar mounting -
Max. rated operation voltage Ue AC -
690 Volt
With error protection -
Position control element -
Front

Availability Back Order

£204.58
