3NP11231BC22

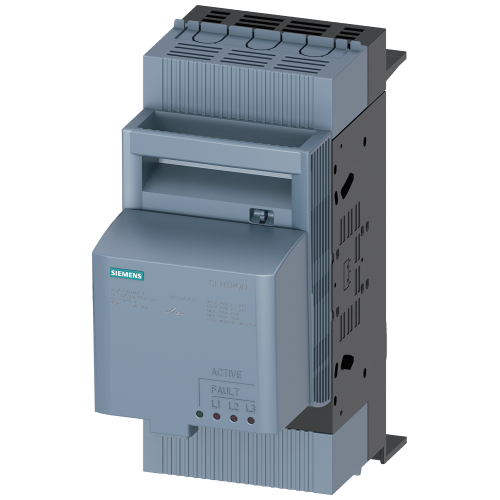

SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH000, 160 A

Manufacturer's No: 3NP1123-1BC22     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH000, 160 A

View 3D

Availability Back Order

£204.58
  • Fuse switch disconnector 3NP1
  • 3-pole, NH000
  • 160 A
  • Suitable for 8US busbar system 60 mm
  • Box terminal
  • Electronic fuse monitoring: EFM10
  • Cover level: 32/70 mm

Selectable mandatory product

Accessories

Component part

Product video


Product

Manufacturer Material ID -
3NP1123-1BC22
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122233

Technical Specification

Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Cable entry -
Other
Rated permanent current Iu -
100 Ampere
Number of poles -
3
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP40
Suitable for fuses -
NH000
Type of electrical connection of main circuit -
Frame clamp
Type of control element -
Cover grip
Version as safety switch -
Suitable for busbar mounting -
Max. rated operation voltage Ue AC -
690 Volt
With error protection -
Position control element -
Front side

Availability Back Order

£204.58
