3NP11131CA26

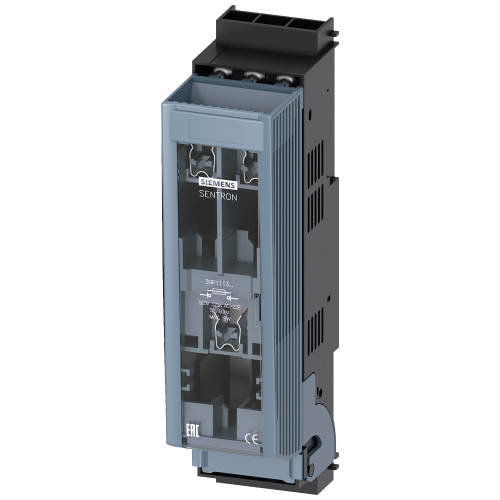

SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH000 narrow, 125 A

Manufacturer's No: 3NP1113-1CA26     Manufacturer: Siemens
SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH000 narrow, 125 A

Availability Back Order

£59.24
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 3-pole, NH000 narrow
  • Current Rating: 125 A
  • Mounting: Assembly on mounting plate
  • Terminals: Box terminal
  • Cover Level: 45 mm
  • Additional Feature: Auxiliary switch with 1 CO

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3NP1113-1CA26
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
UNSPSC -
39122221

Technical Specification

Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP30
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
125 Ampere
Rated short-time withstand current lcw -
5 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH000
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -

Availability Back Order

£59.24
Sign in or Register for customer prices.

Additional Information
