3NP11131BC20

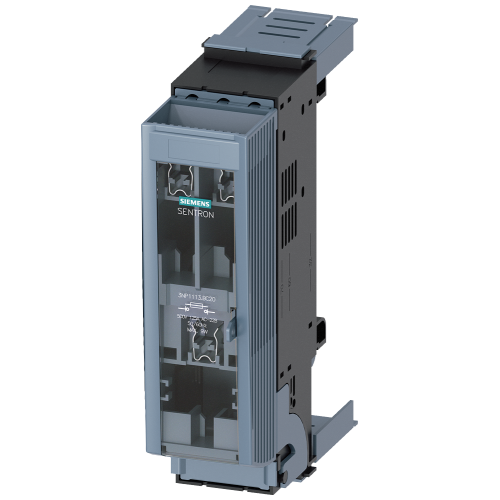

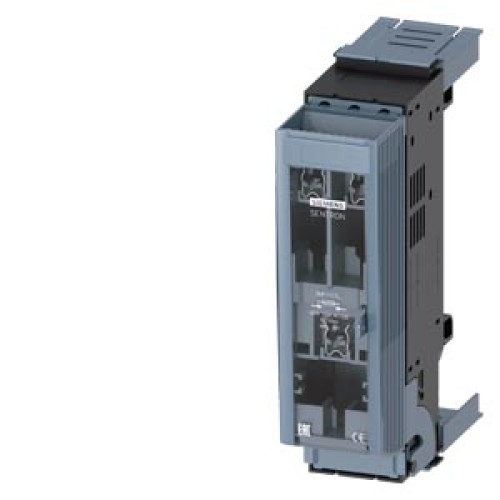

fuse switch disconnector 3NP1

Manufacturer's No: 3NP1113-1BC20     Manufacturer: Siemens

Availability Back Order

£72.05
  • Product: SENTRON Fuse Switch Disconnector 3NP1
  • Configuration: 3-pole
  • Fuse Type: NH000 narrow
  • Current Rating: 125 A
  • Suitable for busbar systems with 60 mm spacing
  • Terminal Type: Box terminal
  • Cable outlet positioned downwards
  • Cover level at 32/60/70 mm

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3NP1113-1BC20
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39122216

Technical Specification

Cable entry -
Other
Conditioned rated short-circuit current Iq -
80 kiloampere
Degree of protection (IP), front side -
IP30
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
125 Ampere
Rated short-time withstand current lcw -
5 kiloampere
Suitable for busbar mounting -
Suitable for fuses -
NH000
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Frame clamp
Version as safety switch -

Availability Back Order

£72.05
