3UL23051A

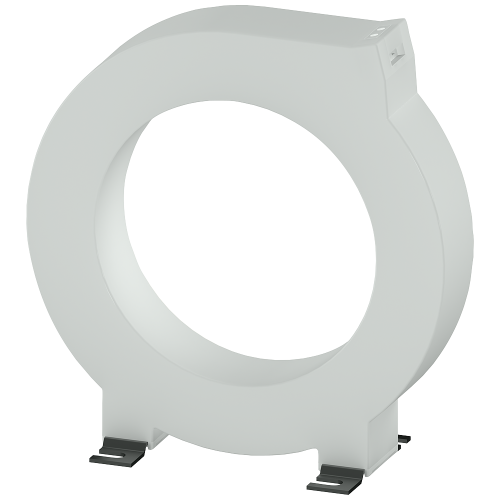

Residual-current transformer for residual current monitoring Bushing opening 105 mm Residual current

Manufacturer's No: 3UL2305-1A     Manufacturer: Siemens
Residual-current transformer for residual current monitoring Bushing opening 105 mm Residual current

View 3D

Availability Back Order

£202.15
  • Residual-current transformer for residual current monitoring
  • Bushing opening: 105 mm
  • Residual current range: 30 mA to 40 A


Product

Manufacturer Material ID -
3UL2305-1A
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85043129
Country of Origin -
ES
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121032

General data

Accuracy class -
-
Secondary rated current -
- Ampere
Model -
Single-phase current converter
Number of primary inputs -
1
Primary rated current -
40 Ampere
Secondary connection -
Screw connection
With shock protection -

Electrical data

Secondary rated apparent power -
- Voltampere
Over current limiting factor -
UN
Rated primary current -
40 Ampere

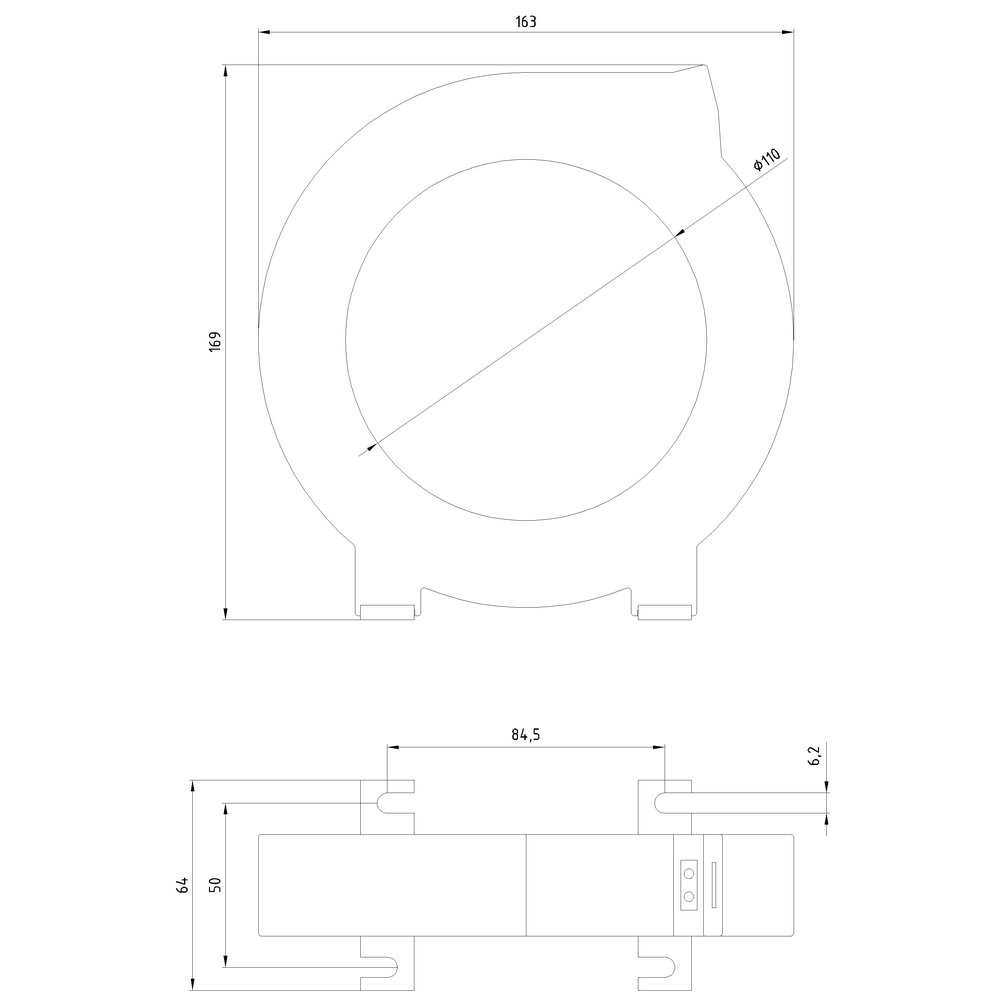

Mechanical data

Width opening -
110 Millimetre
Height opening -
110 Millimetre
Opening diameter -
110 Millimetre

Availability Back Order

£202.15
