3SU18010NP002AA2

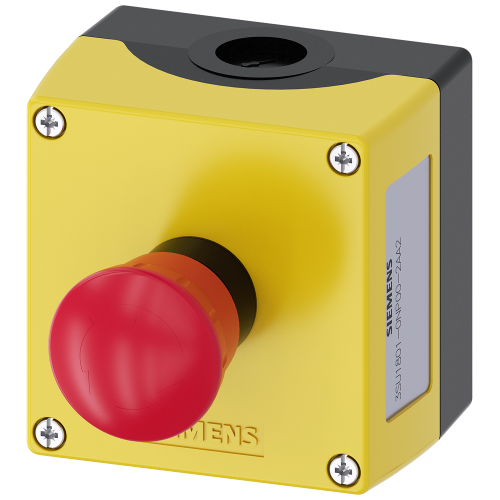

Enclosure for command devices, 22 mm, round

Manufacturer's No: 3SU1801-0NP00-2AA2     Manufacturer: Siemens
Enclosure for command devices, 22 mm, round

View 3D

Availability Back Order

£47.40
  • Enclosure for command devices: 22 mm round
  • Material: Plastic
  • Enclosure top part: Yellow
  • Control point: 1 plastic, in center
  • Control device: A=EMERGENCY STOP mushroom pushbutton, red, 40 mm, rotate-to-unlatch, 1 NC, 1 NO, screw terminal
  • Mounting: Floor mounting
  • Cable entries: 1xM20 each on top and bottom

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SU1801-0NP00-2AA2
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Mechanical data

Material housing -
Plastic
Housing material -
Plastic

Electrical data

Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt

General data

Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Yellow
Degree of protection (IP rating) -
IP67/IP69K
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
1
Number of push buttons -
0
Number of selector switches -
0
Suitable for emergency stop -

Availability Back Order

£47.40
