3SU18010NN002AA2

Enclosure for command devices, 22 mm, round

Manufacturer's No: 3SU1801-0NN00-2AA2     Manufacturer: Siemens

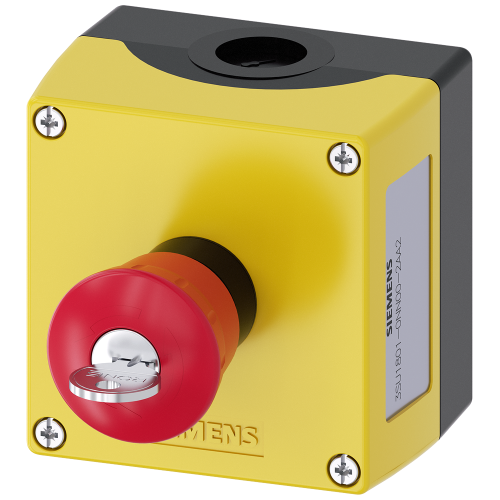

Enclosure for command devices, 22 mm, round

View 3D

Availability Back Order

£68.26
  • Enclosure for command devices: 22 mm round, made of plastic
  • Enclosure top part: Yellow
  • 1 control point made of plastic, located in the center
  • Control point features an EMERGENCY STOP mushroom pushbutton: 40 mm red, with RONIS lock SB30 for key-operated release
  • Pushbutton has 1 normally closed (NC) and 1 normally open (NO) contact
  • Features screw terminals for easy wiring
  • Designed for floor mounting
  • Includes 1xM20 cable gland each on the top and bottom

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SU1801-0NN00-2AA2
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Mechanical data

Material housing -
Plastic
Housing material -
Plastic

Electrical data

Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt

General data

Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Yellow
Degree of protection (IP rating) -
IP67/IP69K
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
1
Number of push buttons -
0
Number of selector switches -
0
Suitable for emergency stop -
