3SU11530AB603BA0

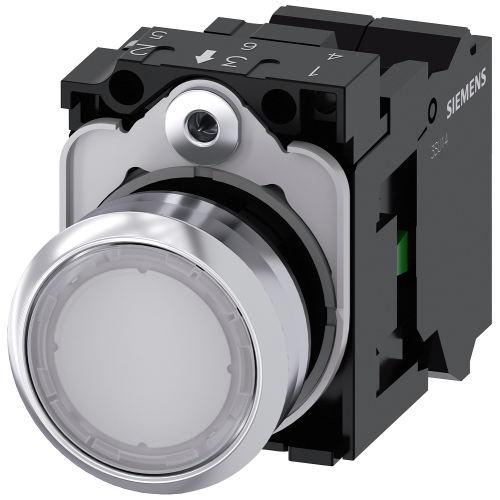

Pushbutton, illuminated, 22 mm, round, metal, high gloss, white, button, 1 NO

Manufacturer's No: 3SU1153-0AB60-3BA0     Manufacturer: Siemens
Pushbutton, illuminated, 22 mm, round, metal, high gloss, white, button, 1 NO

View 3D

Availability Back Order

£28.69
  • Illuminated pushbutton
  • 22 mm round metal design
  • Shiny white finish
  • Flat momentary contact type
  • 1 Normally Open (NO) contact
  • LED module with integrated 110 V AC LED
  • Spring-type terminal

Accessories

Component part



Product

Manufacturer Material ID -
3SU1153-0AB60-3BA0
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

General data

Construction type lens -
UN
Type of button -
Flat
Colour front ring -
Chrome
Degree of protection (IP) -
IP67/IP69K
Colour button -
White
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Hole diameter -
22.3 Millimetre
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Suitable for illumination -
Type of electric connection -
Spring clamp connection
With front ring -

Electrical data

Supply voltage lamp -
110 Volt

Mechanical data

Height opening -
11 Millimetre
Material front ring -
Plastic
Width opening -
29.5 Millimetre

Availability Back Order

£28.69
