3SU11502BL603NA0

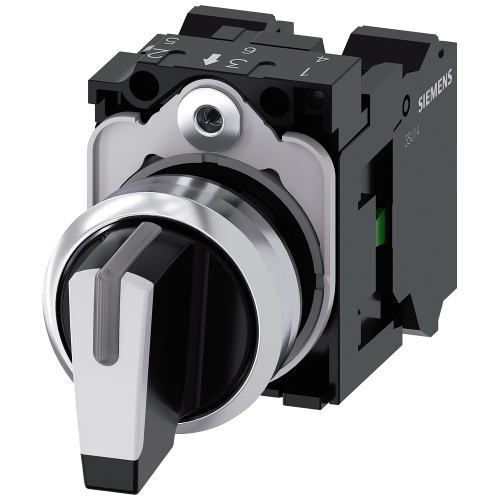

Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 3 switch po

Manufacturer's No: 3SU1150-2BL60-3NA0     Manufacturer: Siemens
Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 3 switch po

View 3D

Availability Back Order

£24.77
  • Illuminable 22mm round metal selector switch
  • Shiny white finish
  • Short selector switch with 3 positions: I-O-II
  • Latching mechanism with actuating angle of 2x45°
  • Switch positions at 10:30h, 12h, and 13:30h
  • Comes with holder and spring-type terminals
  • 1 Normally Open (NO) contact

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1150-2BL60-3NA0
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Degree of protection (IP) -
IP67/IP69K
Colour front ring -
Other
Colour button -
White
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
28.8 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of switch positions -
3
Suitable for illumination -
Supply voltage -
5 Volt
Type of control element -
Toggle
Type of electric connection -
Spring clamp connection
Width opening -
32.3 Millimetre
With front ring -

Availability Back Order

£24.77
