3SU11501HA201FH0

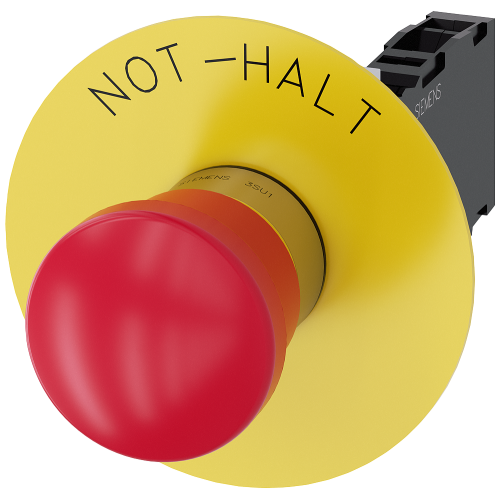

Emergency stop mushroom pushbutton, 22 mm, round, metal, high gloss, red, 1 NO + 1 NC

Manufacturer's No: 3SU1150-1HA20-1FH0     Manufacturer: Siemens
Emergency stop mushroom pushbutton, 22 mm, round, metal, high gloss, red, 1 NO + 1 NC

View 3D

Availability Back Order

£38.17
  • Emergency stop mushroom-type actuator
  • 22 mm round metal design
  • Shiny red finish
  • 40 mm size
  • Positive latching mechanism
  • Compliant with EN ISO 13850 standards
  • Pull-to-unlatch mechanism
  • Yellow backing plate with "NOT-HALT" inscription
  • Includes holder
  • 1 normally open (NO) and 1 normally closed (NC) contact

Read more

  • Screw terminal connection

Accessories

Component part



Product

Manufacturer Material ID -
3SU1150-1HA20-1FH0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

General data

Colour front ring -
UN
Type of electric connection -
UN
Construction type lens -
UN
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Hole diameter -
22.3 Millimetre
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Type of button -
Mushroom

Mechanical data

Material front ring -
UN
Height opening -
46.4 Millimetre
Width opening -
75 Millimetre

Electrical data

Supply voltage lamp -
- Volt

Availability Back Order

£38.17
