3SU11030AB603BA0

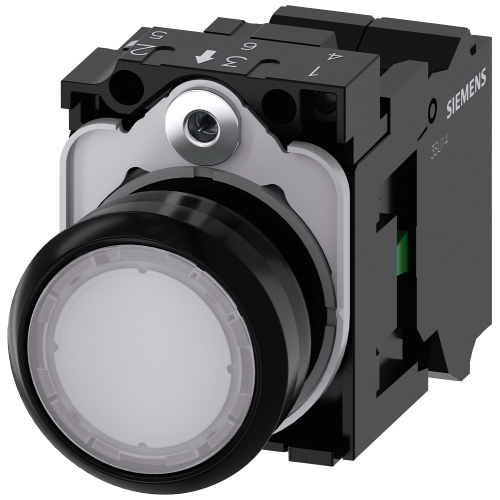

Pushbutton, illuminated, 22 mm, round, plastic, white, 1 NO, 110 V AC

Manufacturer's No: 3SU1103-0AB60-3BA0     Manufacturer: Siemens
Pushbutton, illuminated, 22 mm, round, plastic, white, 1 NO, 110 V AC

View 3D

Availability Back Order

£28.19
  • Illuminated pushbutton
  • 22 mm round plastic design
  • White color
  • Flat momentary contact type
  • With holder
  • 1 Normally Open (NO) contact
  • LED module with integrated LED
  • Operating voltage: 110 V AC
  • Spring-type terminal

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1103-0AB60-3BA0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Construction type lens -
UN
Degree of protection (IP) -
IP67/IP69K
Type of button -
Flat
Supply voltage lamp -
110 Volt
Colour button -
White
Colour front ring -
Black
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
11 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Plastic
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Spring-return -
Suitable for illumination -
Type of electric connection -
Spring clamp connection
Width opening -
29.5 Millimetre
With front ring -

Availability Back Order

£28.19
