3SK21122AA10

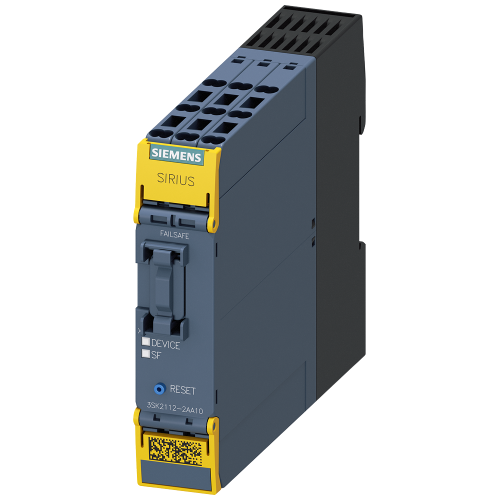

SIRIUS safety relay Basic unit 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via S

Manufacturer's No: 3SK2112-2AA10     Manufacturer: Siemens
SIRIUS safety relay Basic unit 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via S

View 3D

Availability Back Order

£297.79
  • SIRIUS safety relay basic unit 3SK2 series
  • 10 F-DI, 2 F-DQ, 1 DQ inputs
  • 24 V DC
  • Can be parameterized via SIRIUS Safety ES
  • 22.5 mm overall width
  • Spring-loaded terminal (push-in)
  • Up to SIL 3 (IEC 62061) and performance level e (ISO 13849-1)
  • Output expansions: 3SK1, coupling relay 3RQ1, fail-safe motor starters 3RM1
  • Device connector connectable
Question and Answer (Q&A video)
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3SK2112-2AA10
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, delayed, with contact -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, with contact -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
UN
Evaluation inputs -
UN
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0 + 1
Width -
22.5 Millimetre
Model -
Basic device
Height -
100 Millimetre
Depth -
124.5 Millimetre
With approval according to UL -
With detachable clamps -
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
2
Type of electric connection -
Spring clamp connection
Rated control supply voltage at DC -
24 Volt
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level e
Stop category acc. to IEC 60204 -
0 + 1
Voltage type for actuating -
DC
SIL according to IEC 61508 -
3
With approval for TÜV -

Availability Back Order

£297.79
