3SK11112AB30

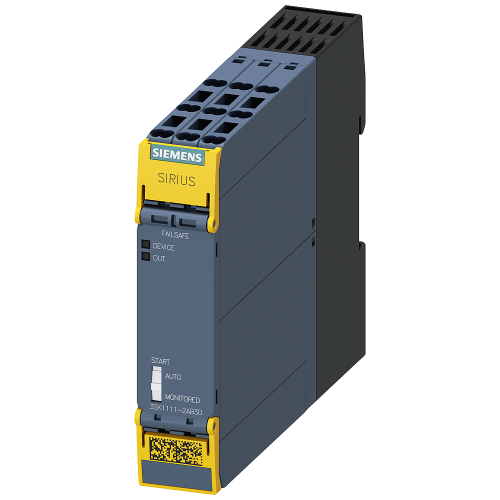

SIRIUS safety relay Basic unit Standard series Relay enabling circuits 3 NO contacts plus Relay sign

Manufacturer's No: 3SK1111-2AB30     Manufacturer: Siemens
SIRIUS safety relay Basic unit Standard series Relay enabling circuits 3 NO contacts plus Relay sign

View 3D

Availability In Stock

£142.14
  • SIRIUS safety relay Basic unit
  • Standard series
  • Relay enabling circuits: 3 NO contacts
  • Relay signaling circuit: 1 NC contact
  • Input voltage: 24 V AC/DC
  • Spring-type terminal (push-in)

Accessories

Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3SK1111-2AB30
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Release-delay -
- Second
Number of outputs, signalling function, delayed, semiconductors -
-
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
UN
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Width -
22.5 Millimetre
Model -
Other
Height -
100 Millimetre
Depth -
121.6 Millimetre
With approval according to UL -
With start input -
With feedback circuit -
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, undelayed, semiconductors -
0
Type of electric connection -
Spring clamp connection
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for monitoring of magnetic switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Performance level acc. to EN ISO 13849-1 -
Level e
Stop category acc. to IEC 60204 -
0
Voltage type for actuating -
AC/DC
Evaluation inputs -
One- and two-channel
SIL according to IEC 61508 -
3
With approval for TÜV -

Availability In Stock

£142.14
