3SE53120SD13

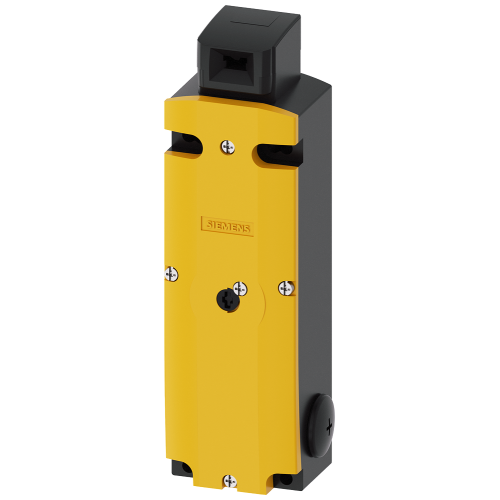

Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Spring-locked Au

Manufacturer's No: 3SE5312-0SD13     Manufacturer: Siemens
Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Spring-locked Au

View 3D

Availability Back Order

£263.49
  • Safety position switch with tumbler
  • Locking force: 2600 N
  • 5 directions of approaches
  • Spring-locked
  • Auxiliary release on front
  • Magnet voltage: 230 V AC
  • Monitoring actuator: 2 NC/1 NO
  • Monitoring magnet: 2 NC/1 NO
  • Supplied without actuator (Actuator 3SE5000-0AV0 to be ordered separately)

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE5312-0SD13
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated control supply voltage Us magnet drive at DC -
- Volt
Rated operation current Ie at AC-15, 125 V -
- Ampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Rated control supply voltage Us magnet drive at AC 60 Hz -
230 Volt
Guard locking force -
2600 Newton
Housing material -
Metal
Suitable for safety functions -
Coating housing -
Lacquered
Type of switching contact -
Slow-action switch
Type of interface for safety communication -
None
Type of electric connection -
Cable entry metrical
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP66/IP67
Number of safety auxiliary contacts -
4
Interface type -
None
Rated control supply voltage Us magnet drive at AC 50 Hz -
230 Volt
Rated control supply voltage magnet drive at AC 60 Hz -
230 Volt
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
54 Millimetre
Height of sensor -
43.5 Millimetre
Length of sensor -
185 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
2600 Newton
Number of contacts as change-over contact -
0
Type of guard locking -
Quiescent current principle

Availability Back Order

£263.49
