3SE52340RV401AC4

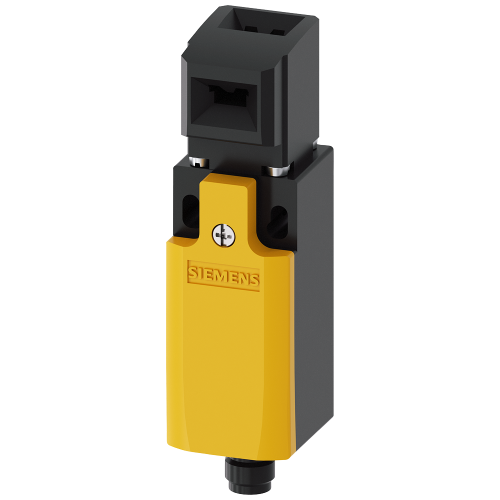

Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/1

Manufacturer's No: 3SE5234-0RV40-1AC4     Manufacturer: Siemens
Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/1

View 3D

Availability Back Order

£57.12
  • Safety position switch with separate actuator
  • Plastic enclosure, 31 mm according to EN 50047
  • 1 NO/1 NC slow-action contacts
  • 5 directions of approaches with M12 connector, 4-pole
  • Pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14
  • Max. voltage: 250 V
  • Max. current: 4 A
  • Matching separate actuator: 3SE5000-0AV0 (must be ordered separately)

Selectable mandatory product

Accessories

Component part

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5234-0RV40-1AC4
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Material housing -
Plastic
Degree of protection (IP) -
IP65
Type of interface -
None
Type of switching contact -
Slow-action switch
Type of electric connection -
Other
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
118 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
None
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability Back Order

£57.12
