3SE52340QV401AE2

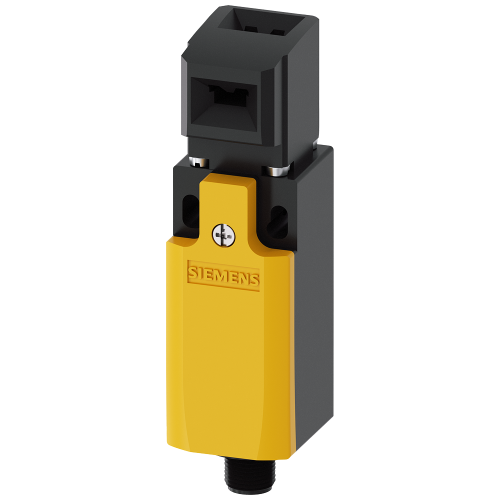

Safety position switch, plastic encl., 31 mm, EN50047, 1 NO/1 NC, 5-pole

Manufacturer's No: 3SE5234-0QV40-1AE2     Manufacturer: Siemens
Safety position switch, plastic encl., 31 mm, EN50047, 1 NO/1 NC, 5-pole

View 3D

Availability Back Order

£60.44
  • Safety position switch with separate actuator
  • Plastic enclosure, 31 mm according to EN 50047
  • 1 Normally Open (NO) / 2 Normally Closed (NC) slow-action contacts
  • 5 directions of approach with M12 connector, 5-pole
  • Pin assignment: Pin1=21, Pin4=22, Pin2=31, Pin5=32
  • Suitable for connection to all SIMATIC ET200* compact block I/O modules
  • Matching separate actuator 3SE5000-0AV../W.. must be ordered separately

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SE5234-0QV40-1AE2
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Material housing -
Plastic
Degree of protection (IP) -
IP65
Type of interface -
None
Housing material -
Plastic
Suitable for safety functions -
Coating housing -
Other
Type of switching contact -
Slow-action switch
Type of interface for safety communication -
None
Type of electric connection -
Other
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Forced opening -
Number of safety auxiliary contacts -
2
Interface type -
None
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
33 Millimetre
Length of sensor -
118 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
0
Degree of protection (NEMA) -
12

Availability Back Order

£60.44
