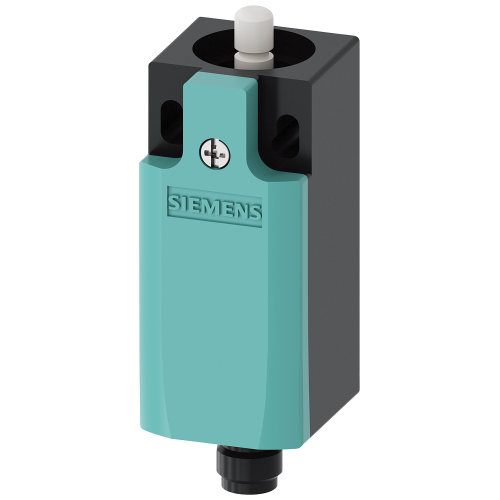

Position switch Plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC quick action contacts integ

3SE52340HC051AC4

Position switch Plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC quick action contacts integ

Produced by Siemens

Availability In Stock

Price - £33.97
Position switch Plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC quick action contacts integrated (not replaceable) with M12 connector, 4-pole Pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14 for max. 250 V and 4 A with Teflon plunger
No alternatives available for this product.
Product
Manufacturer Material ID -
3SE5234-0HC05-1AC4
Net Weight -
0.07kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216
Technical Specification
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
33 Millimetre
Length of sensor -
89.7 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Degree of protection (NEMA) -
12
