3SE52320RV401AJ0

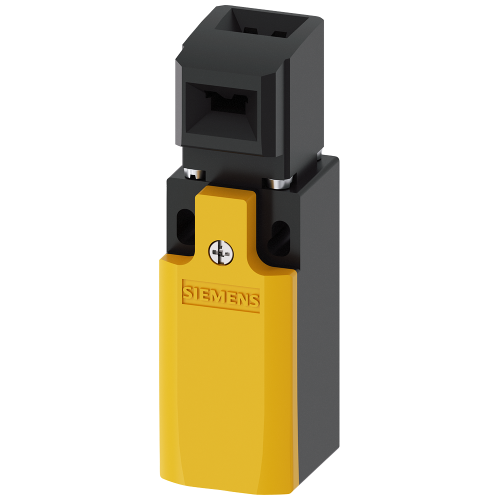

SIRIUS position switch, with separate actuator plastic 31 mm, 1 NO/1 NC

Manufacturer's No: 3SE5232-0RV40-1AJ0     Manufacturer: Siemens
SIRIUS position switch, with separate actuator plastic 31 mm, 1 NO/1 NC

View 3D

Availability Back Order

£52.33
  • Safety position switch with separate actuator
  • Plastic enclosure 31 mm according to EN 50047
  • Increased corrosion protection
  • Device connection: 1x (M20x1.5)
  • 1 NO/1 NC slow-action contacts functional at -40°C
  • Actuator model: 3SE5000-0AV0 (must be ordered separately)

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5232-0RV40-1AJ0
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Material housing -
Plastic
Degree of protection (IP) -
IP65
Type of interface -
None
Type of switching contact -
Slow-action switch
Type of electric connection -
Cable entry metrical
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-40 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
104 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
None
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability Back Order

£52.33
