Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 N

3SE52320HC05

Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 N

Produced by Siemens

Availability Back Order

Price - £17.57

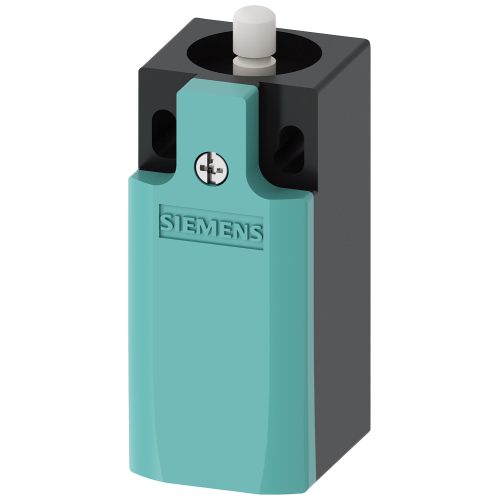

Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts integrated (not replaceable) Rounded plunger Form B with Teflon plunger
No alternatives available for this product.
Product
Manufacturer Material ID -
3SE5232-0HC05
Net Weight -
0.07kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216
Technical Specification
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
33 Millimetre
Length of sensor -
75.7 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
