3SE52141CC051AF3

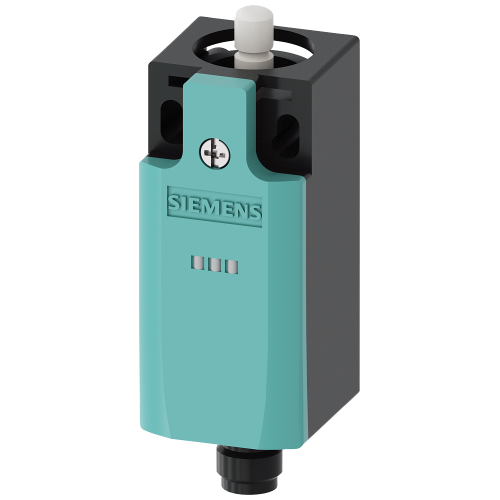

Position switch Metal enclosure 31 mm according to EN 50047 1 NO/1 NC quick action contacts with M12

Manufacturer's No: 3SE5214-1CC05-1AF3     Manufacturer: Siemens
Position switch Metal enclosure 31 mm according to EN 50047 1 NO/1 NC quick action contacts with M12

View 3D

Availability Back Order

£61.05
  • Position switch with metal enclosure, 31 mm according to EN 50047
  • 1 Normally Open (NO) and 1 Normally Closed (NC) quick action contacts
  • M12 connector, 5-pole, fixed with 2 LEDs (yellow/green)
  • Operating voltage: 24 V DC
  • Plunger with pin assignment:
    • Pin 1=21
    • Pin 2=22
    • Pin 3=13 + LED green
    • Pin 4=14 + LED yellow
    • Pin 5=ground LED

Accessories

Component part



Product

Manufacturer Material ID -
3SE5214-1CC05-1AF3
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Metal
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Switching function -
Quick-break switch
Housing material -
Metal
Suitable for safety functions -
Coating housing -
Lacquered
With status indication -
Type of interface for safety communication -
None
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Forced opening -
Number of safety auxiliary contacts -
1
Type of control element -
Plunger
Interface type -
None
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
33 Millimetre
Length of sensor -
75.7 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
Alignment of the control element -
Roller cam straight
Degree of protection (NEMA) -
12

Availability Back Order

£61.05
