3SE51150QV101AD1

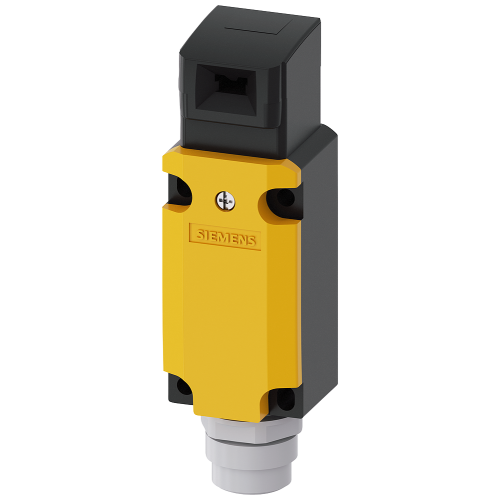

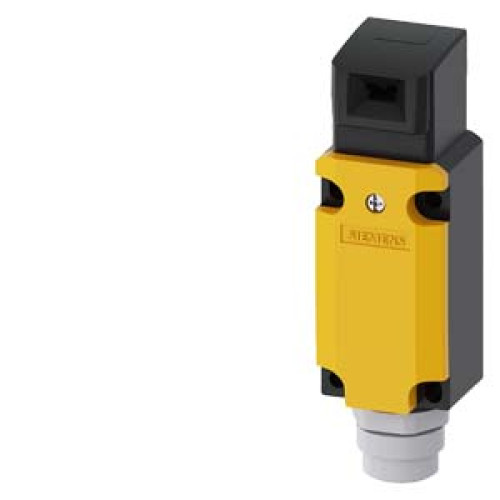

Safety position switch, metal enclosure 40 mm, EN50041, 1 NO/2 NC

Manufacturer's No: 3SE5115-0QV10-1AD1     Manufacturer: Siemens
Safety position switch, metal enclosure 40 mm, EN50041, 1 NO/2 NC

View 3D

Availability Back Order

£134.51
  • Safety position switch with separate actuator
  • Metal enclosure, 40 mm according to EN 50041
  • 1 NO/2 NC slow-action contacts with connector 6+PE according to EN 43651
  • Plastic material, max. 250 V, 6 A
  • 5 directions of approaches
  • Pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14, Pin5=31, Pin6=32, and PE connected
  • Matching separate Actuator 3SE5000-0AV0 must be ordered separately

Selectable mandatory product

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5115-0QV10-1AD1
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Material housing -
Metal
Type of switching contact -
Slow-action switch
Degree of protection (IP) -
IP65
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
37.3 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
136 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
None
Type of electric connection -
Plug-in connection others
Type of interface for safety communication -
None
Width sensor -
40 Millimetre

Availability Back Order

£134.51
