3SE51150LA001AD1

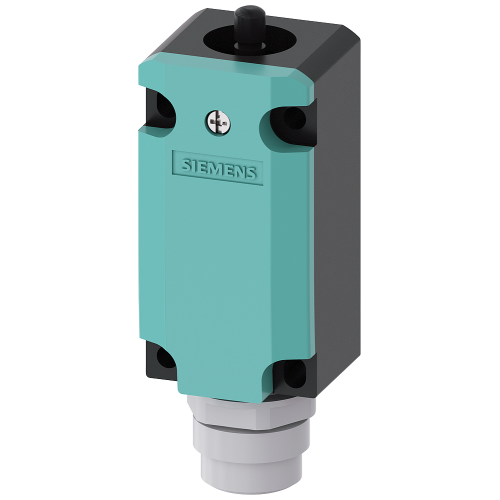

Basic switch for position switch 3SE51, metal encl. 40 mm, EN50041

Manufacturer's No: 3SE5115-0LA00-1AD1     Manufacturer: Siemens
Basic switch for position switch 3SE51, metal encl. 40 mm, EN50041

View 3D

Availability Back Order

£74.32
  • Basic switch for position switch 3SE51
  • Metal enclosure 40 mm according to EN 50041
  • 1 NO/2 NC quick action contacts
  • Connector 6+PE according to EN 43651
  • Plastic material
  • Max. 250 V, 6 A
  • Pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14, Pin5=31, Pin6=32
  • PE connected

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SE5115-0LA00-1AD1
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Switching function -
Quick-break switch
Material housing -
Metal
Suitable for safety functions -
Coating housing -
Lacquered
Type of interface for safety communication -
None
Type of electric connection -
Plug-in connection others
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Degree of protection (IP) -
IP65
Forced opening -
Number of safety auxiliary contacts -
2
Type of control element -
None
Type of interface -
None
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
40 Millimetre
Height of sensor -
37.3 Millimetre
Length of sensor -
111.7 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
Alignment of the control element -
Roller cam straight
Degree of protection (NEMA) -
12

Availability Back Order

£74.32
