3SE51140RV101AC5

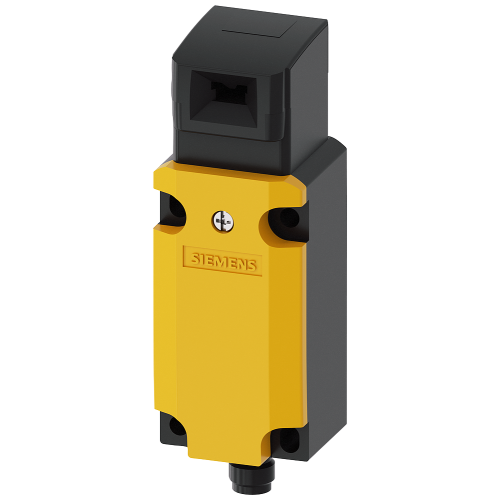

Safety position switch with separate actuator, 40 mm, acc. to EN50041 1 NO/1 NC

Manufacturer's No: 3SE5114-0RV10-1AC5     Manufacturer: Siemens
Safety position switch with separate actuator, 40 mm, acc. to EN50041 1 NO/1 NC

View 3D

Availability Back Order

£84.15
  • Safety position switch with separate actuator
  • Metal enclosure, 40 mm according to EN 50041
  • 1 NO/1 NC slow-action contacts
  • M12 connector, 5-pole, fixed
  • Pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14, Pin5=PE
  • 5 directions of approaches
  • Matching separate actuator 3SE5000-0AV0 must be ordered separately

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SE5114-0RV10-1AC5
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Material housing -
Metal
Suitable for safety functions -
Coating housing -
Lacquered
Type of switching contact -
Slow-action switch
Type of interface for safety communication -
None
Type of electric connection -
Other
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Degree of protection (IP) -
IP66/IP67
Forced opening -
Number of safety auxiliary contacts -
1
Type of interface -
None
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
40 Millimetre
Height of sensor -
37.3 Millimetre
Length of sensor -
124 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
Degree of protection (NEMA) -
12

Availability Back Order

£84.15
