3SE51140LA001AE3

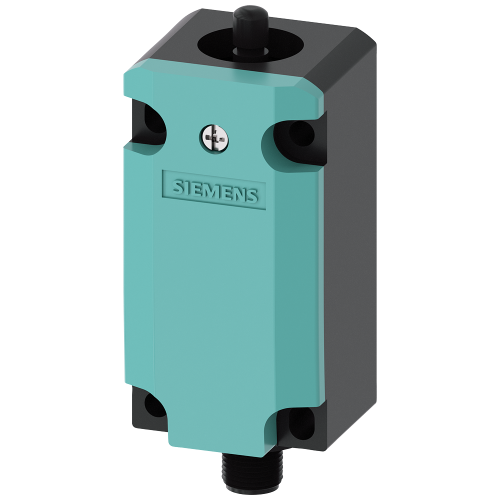

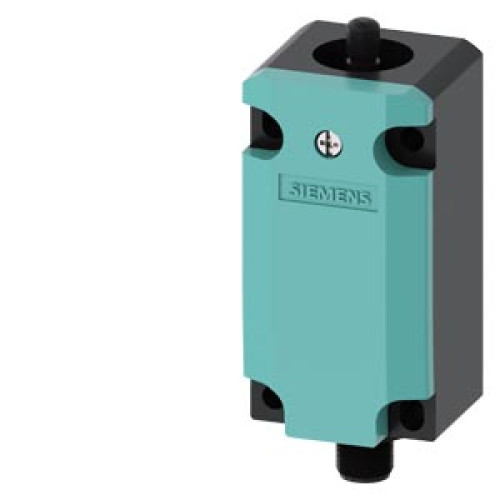

Basic switch for position switch 3SE51, metal encl. 40 mm, EN50041, 1 NO/2 NC, 5-pole

Manufacturer's No: 3SE5114-0LA00-1AE3     Manufacturer: Siemens
Basic switch for position switch 3SE51, metal encl. 40 mm, EN50041, 1 NO/2 NC, 5-pole

View 3D

Availability Back Order

£48.46
  • Basic switch with M12 connector
  • Metal enclosure 40 mm according to EN 50041
  • Device connection with M12 connector, 5-pole
  • Fixed 1 NO/2 NC quick action contacts (2 NC and PE connected)
  • Max. 125 V, 4 A
  • Pin configuration: Pin1=21, Pin4=22, Pin2=31, Pin5=32, Pin3=PE
  • Suitable for connection to all SIMATIC ET200* compact block I/O modules

Selectable mandatory product

Accessories

Component part



Product

Manufacturer Material ID -
3SE5114-0LA00-1AE3
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Switching function -
Quick-break switch
Material housing -
Metal
Suitable for safety functions -
Coating housing -
Lacquered
Type of interface for safety communication -
None
Type of electric connection -
Plug-in connection M12
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Degree of protection (IP) -
IP66/IP67
Forced opening -
Number of safety auxiliary contacts -
2
Type of control element -
None
Type of interface -
None
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
40 Millimetre
Height of sensor -
37.3 Millimetre
Length of sensor -
99.7 Millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
Alignment of the control element -
Roller cam straight
Degree of protection (NEMA) -
12

Availability Back Order

£48.46
