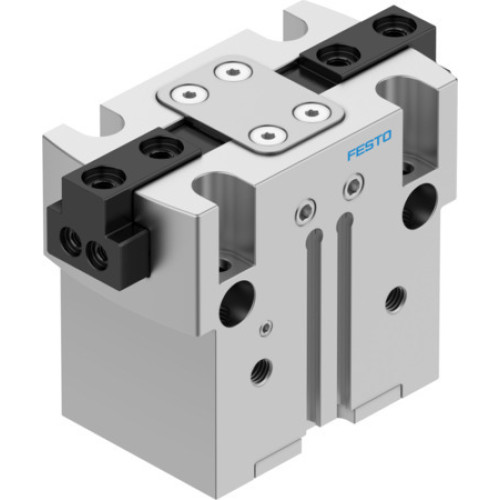

HGPT-25-A-B-F-G1 Parallel gripper

Manufacturer's No: HGPT-25-A-B-F-G1     Manufacturer: Festo
HGPT-25-A-B-F-G1 Parallel gripper

Availability Back Order

£697.52
  • Model: HGPT-25-A-B-F-G1
  • Gripping Force Retention: Yes
  • Size: 25
  • Stroke per Gripper Jaw: 3 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash ax, ay: ? 0.1 deg
  • Max. Gripper Jaw Backlash Sz: ? 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Back-Up: During Opening
  • Design: Wedge-Shaped Drive
  • Design: Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. Operating Frequency of Gripper: 3 HZ
  • Min. Opening Time: 24 MS at 0.6 MPa
  • Min. Closing Time: 45 MS at 0.6 MPa
  • Max. Mass per External Gripper Finger: 110 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 1.479 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 1200 N
  • Max. Torque at Gripper Mx Static: 50 Nm
  • Max. Torque at Gripper My Static: 45 Nm
  • Max. Torque at Gripper Mz Static: 35 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 353 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5
  • Materials: RoHS-Compliant
  • Material Cover Cap: High-Alloy Stainless Steel
  • Material Housing: Anodised Aluminium
  • Material Gripper Jaws: Hardened Steel

Accessories

PUN-H-6X1-BL Plastic tubing

Product Code - 197384
Price £1.09
Back Order

QSM-M5-6 Push-in fitting

Product Code - 153306
Price £2.63
Back Order

QSML-M5-6 Push-in L-fitting

Product Code - 153335
Price £3.66
Back Order


Product

Manufacturer Material ID -
HGPT-25-A-B-F-G1
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503
Festo

Availability Back Order

£697.52
