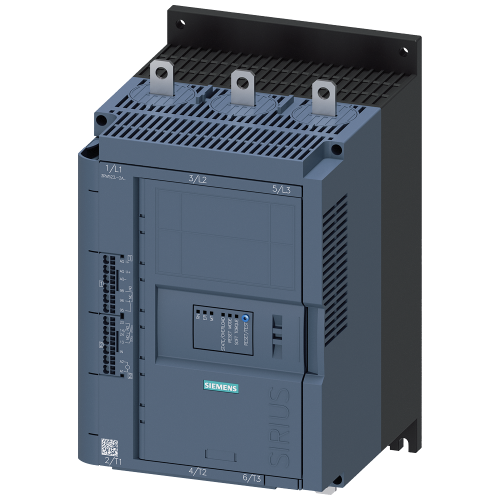

SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC spring-type terminals Analog output

3RW52352AC04

SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC spring-type terminals Analog output

Produced by Siemens

Availability Back Order

Price - £1,717.50
SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC spring-type terminals Analog output
Product
Manufacturer Material ID -
3RW5235-2AC04
Net Weight -
7.55kg
Additional Product Information
Commodity Code -
85371098
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521
Technical Specification
Rated operation current Ie at 40 ∞C Tu -
143 Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated operating voltage Ue -
200 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at 40 °C Tu -
143 Ampere
Rated power three-phase motor, inline, at 230 V -
37 Kilowatt
Rated power three-phase motor, inline, at 400 V -
75 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
75 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
132 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
product_description -
143A 480V SOFTSTARTER 24VUC CC Degrees celsius
