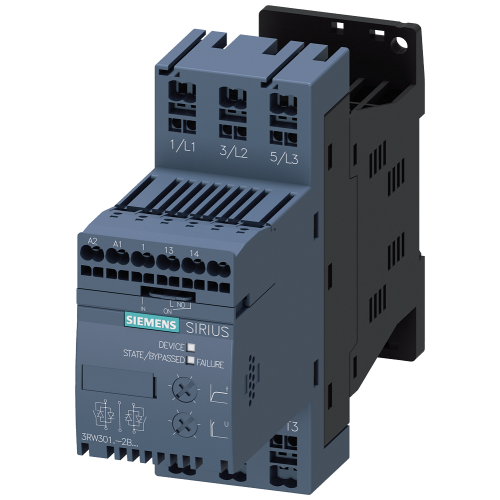

3RW30182BB04

SIRIUS soft starter S00 17.6 A, 7.5kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-type terminals

Manufacturer's No: 3RW3018-2BB04     Manufacturer: Siemens
SIRIUS soft starter S00 17.6 A, 7.5kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-type terminals

View 3D

Availability Back Order

£227.47
  • Model: SIRIUS soft starter S00
  • Current: 17.6 A
  • Power: 7.5 kW at 400 V
  • Operating temperature: 40°C
  • Voltage range: 200-480 V AC
  • Control voltage: 24 V AC/DC
  • Terminal type: Spring-type
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Instructional video
Instructional video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW3018-2BB04
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Rated operation current Ie at 40 ∞C Tu -
17.6 Ampere
Rated power three-phase motor, inside delta, at 230 V -
- Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Function -
Single direction
Internal bypass -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
17.6 Ampere
Rated power three-phase motor, inline, at 230 V -
4 Kilowatt
Rated power three-phase motor, inline, at 400 V -
7.5 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Other
Voltage type for actuating -
AC/DC

Availability Back Order

£227.47
