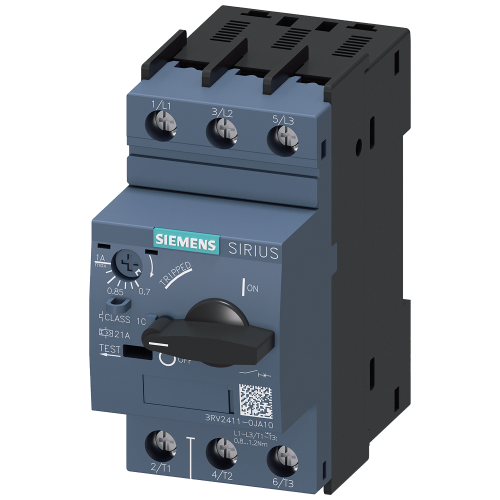

3RV24110JA10

Circuit breaker size S00 for transformer protection A-release 0.7...1 A N-release 21 A screw termina

Manufacturer's No: 3RV2411-0JA10     Manufacturer: Siemens
Circuit breaker size S00 for transformer protection A-release 0.7...1 A N-release 21 A screw termina

View 3D

Availability Back Order

£66.94
  • Circuit breaker size: S00
  • Transformer protection
  • A-release: 0.7 - 1 A
  • N-release: 21 A
  • Screw terminal
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.21
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.32
Back Order
Price £0.0233
Back Order


Product

Manufacturer Material ID -
3RV2411-0JA10
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere

Electrical data

Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
21 Ampere
Overload release current setting -
0.7 Ampere
Position of connection for main current circuit -
Other
Rated permanent current Iu -
1 Ampere
Rated voltage -
20 Volt

General data

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Type of control element -
Toggle
Type of electrical connection of main circuit -
Screw connection
