3RV20424RA10

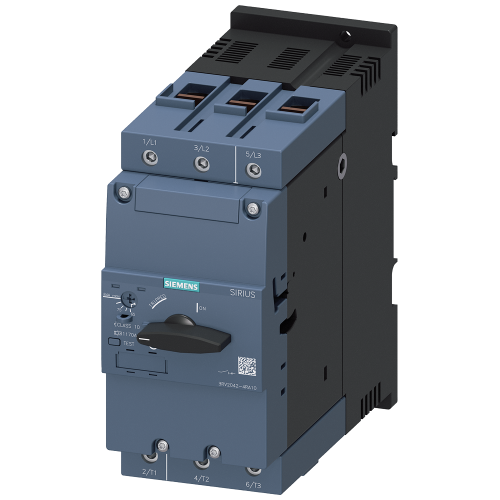

Circuit breaker size S3 for motor protection, CLASS 10 A-release 65...84 A N-release 1170 A screw terminal Increased switching cap

Manufacturer's No: 3RV2042-4RA10     Manufacturer: Siemens
Circuit breaker size S3 for motor protection, CLASS 10 A-release 65...84 A N-release 1170 A screw terminal Increased switching capacity 100 kA

View 3D

Availability Back Order

£404.97
  • Circuit breaker size: S3
  • Motor protection class: CLASS 10
  • A-release: 65...84 A
  • N-release: 1170 A
  • Screw terminal
  • Increased switching capacity: 100 kA

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2042-4RA10
Net Weight -
2.26kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
1170 Ampere
Degree of protection (IP rating) -
IP20
Depth -
176 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
165 Millimetre
Number of poles -
3
Overload release current setting -
65 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
22 Kilowatt
Rated operation power at AC-3, 400 V -
45 Kilowatt
Rated permanent current Iu -
84 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
70 Millimetre

Availability Back Order

£404.97
